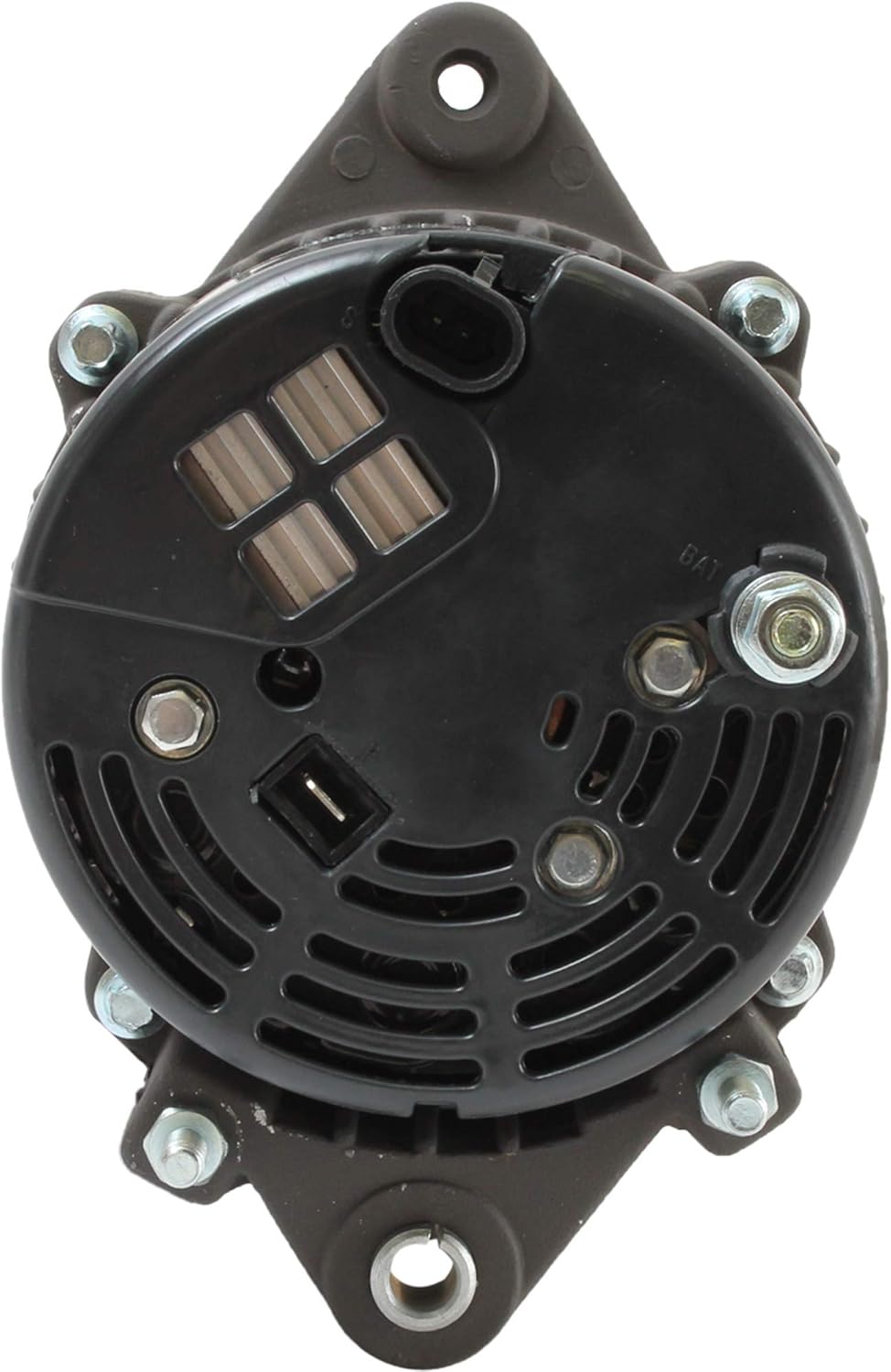

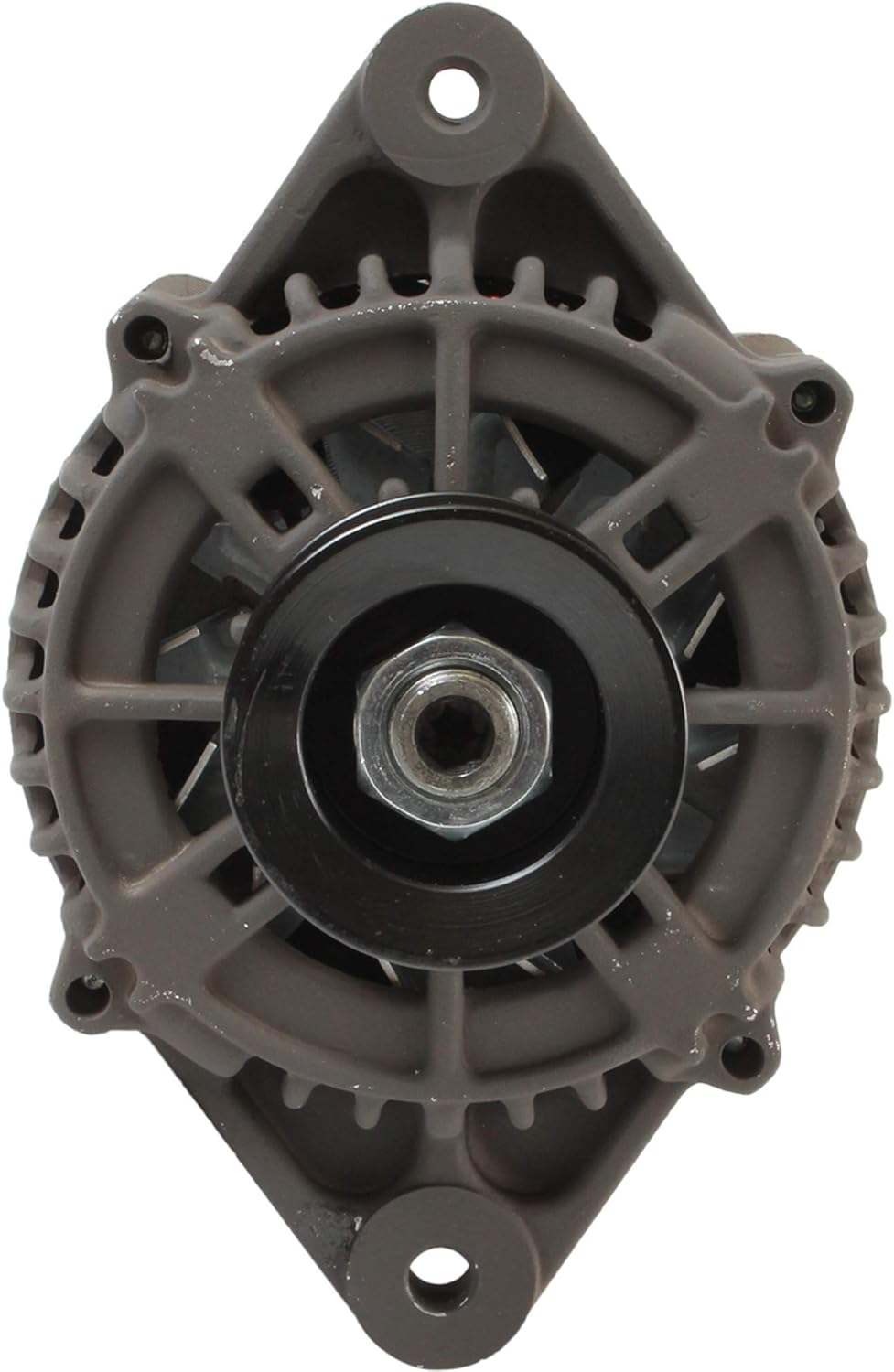

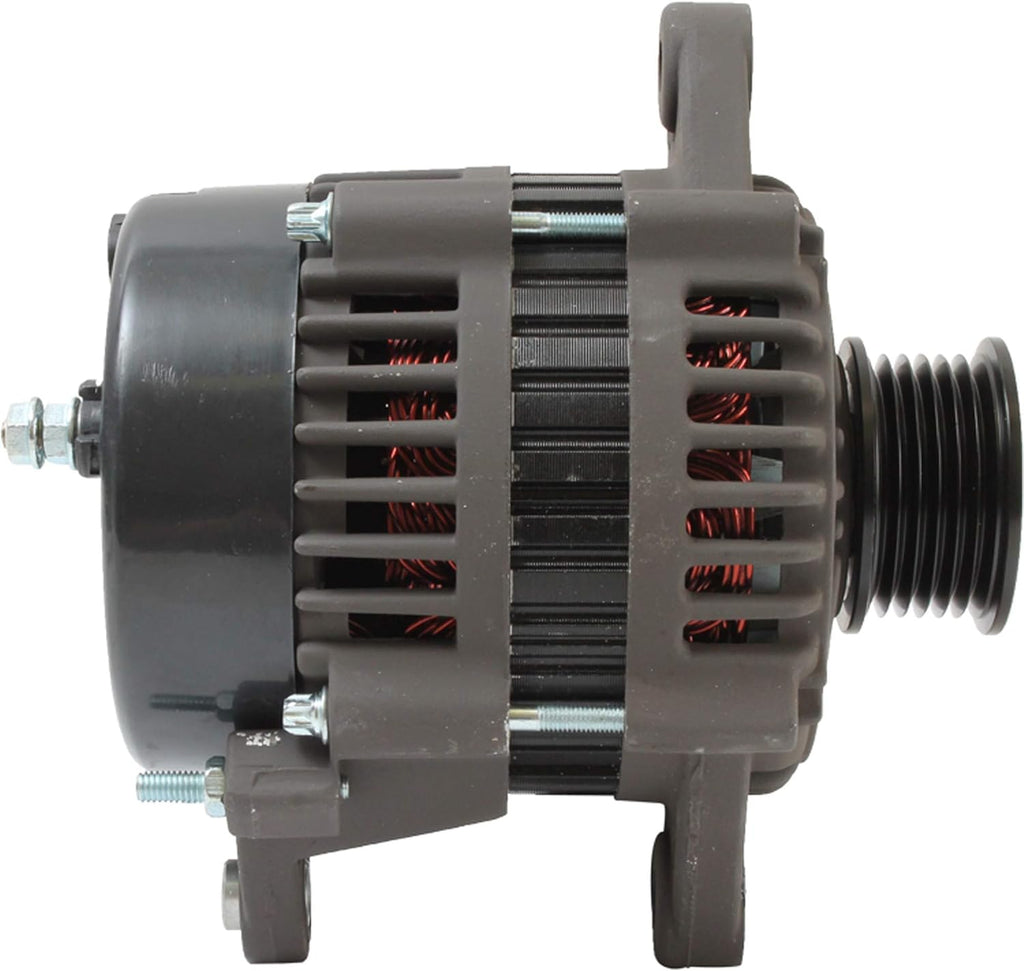

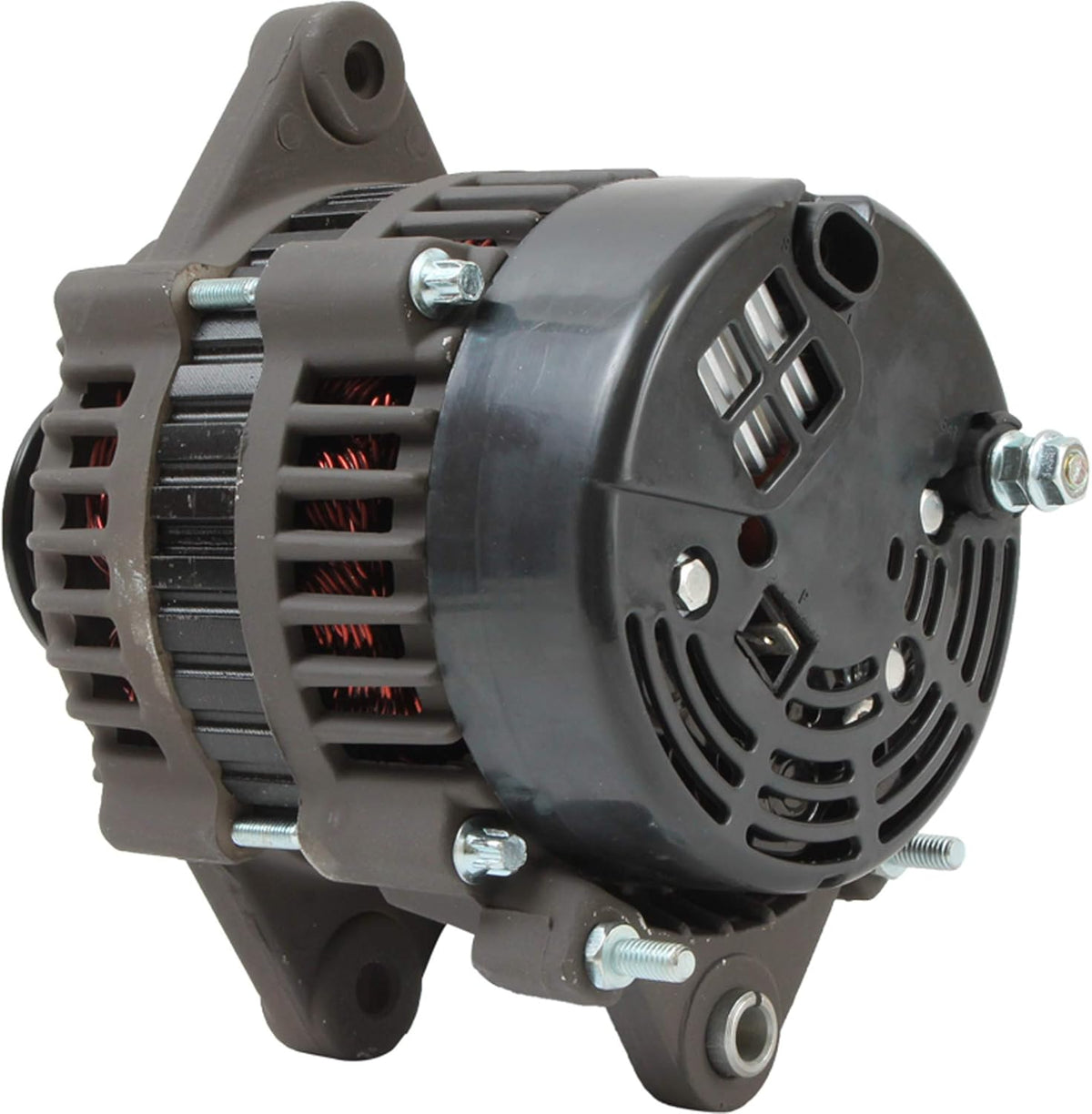

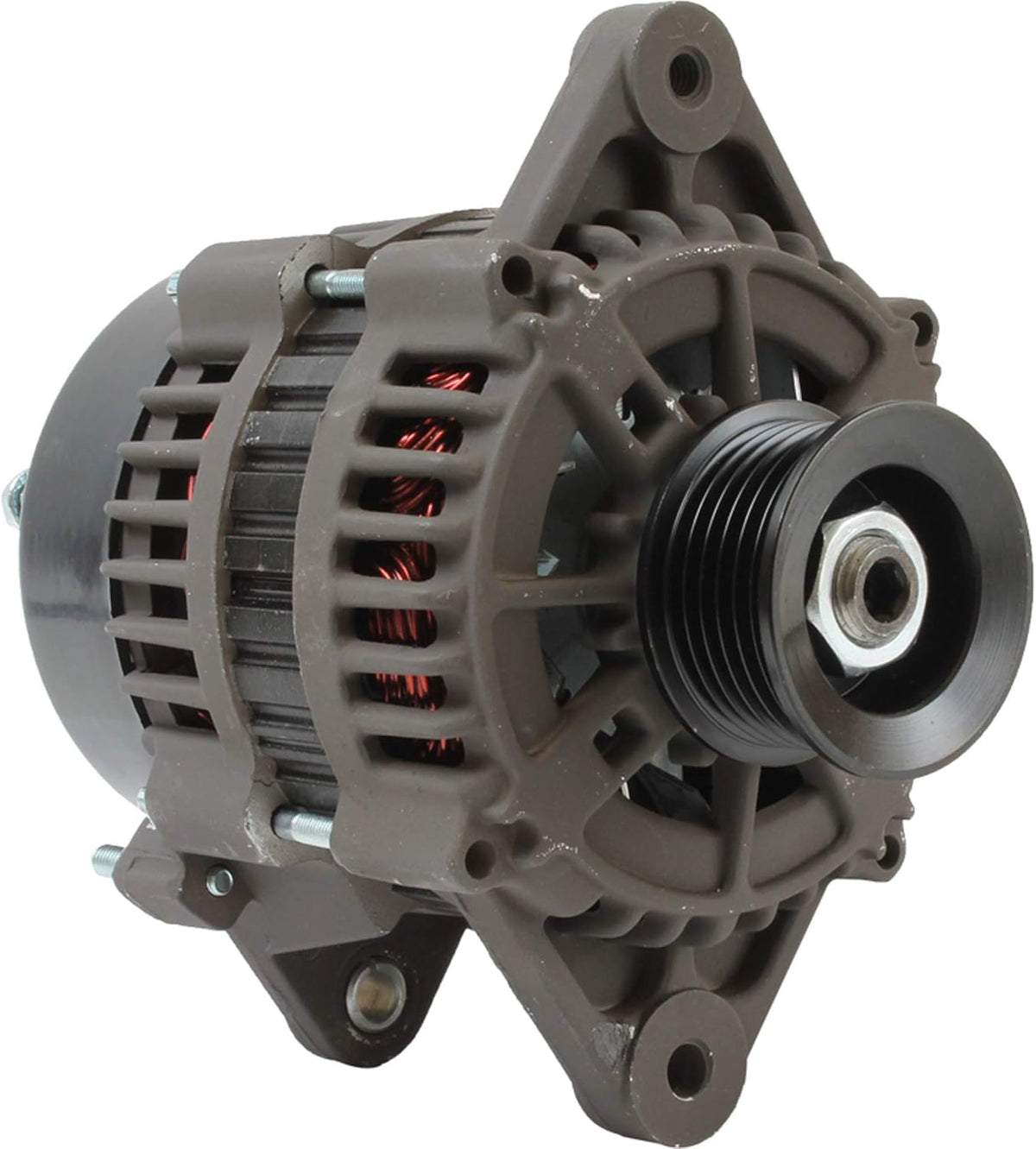

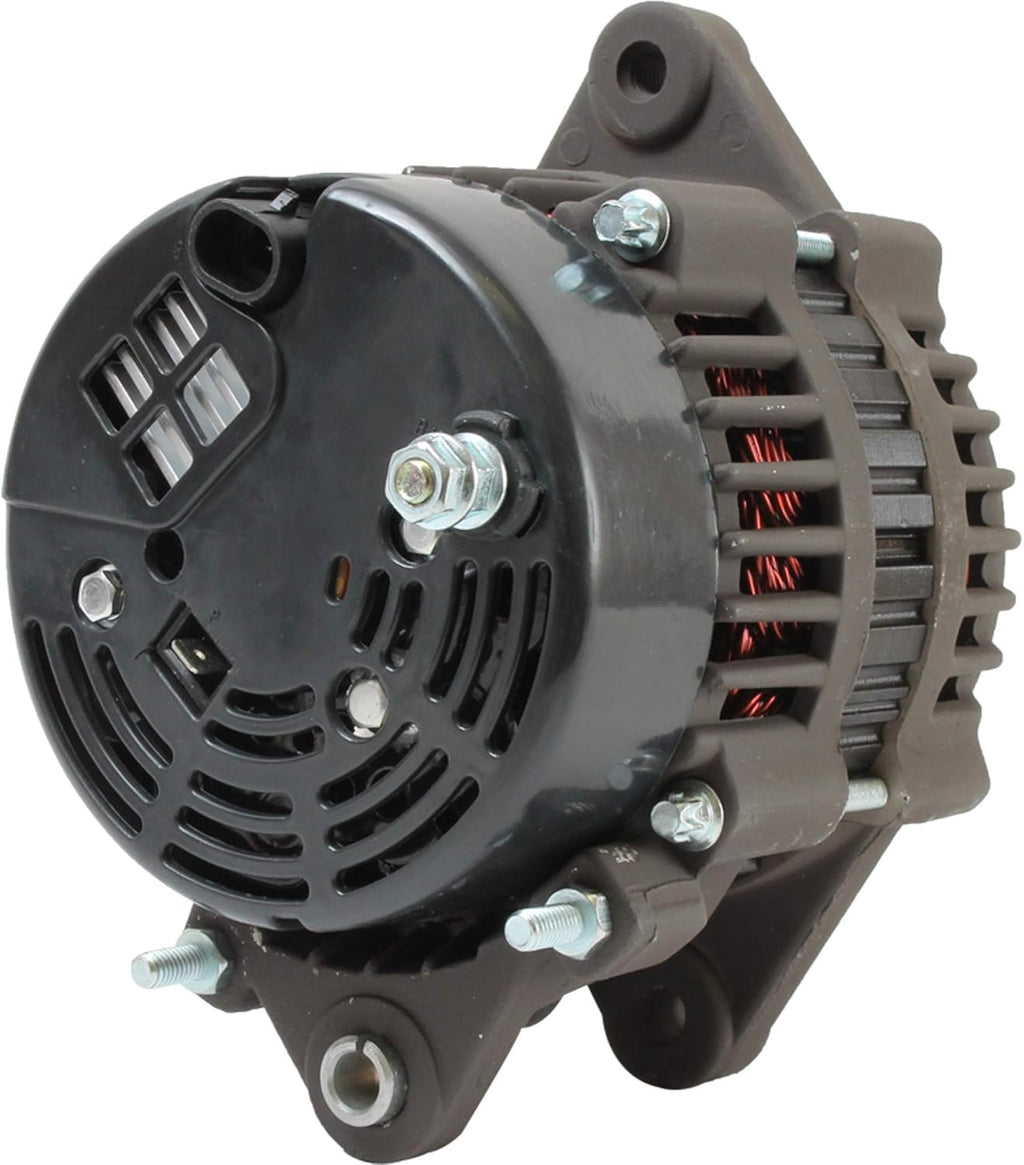

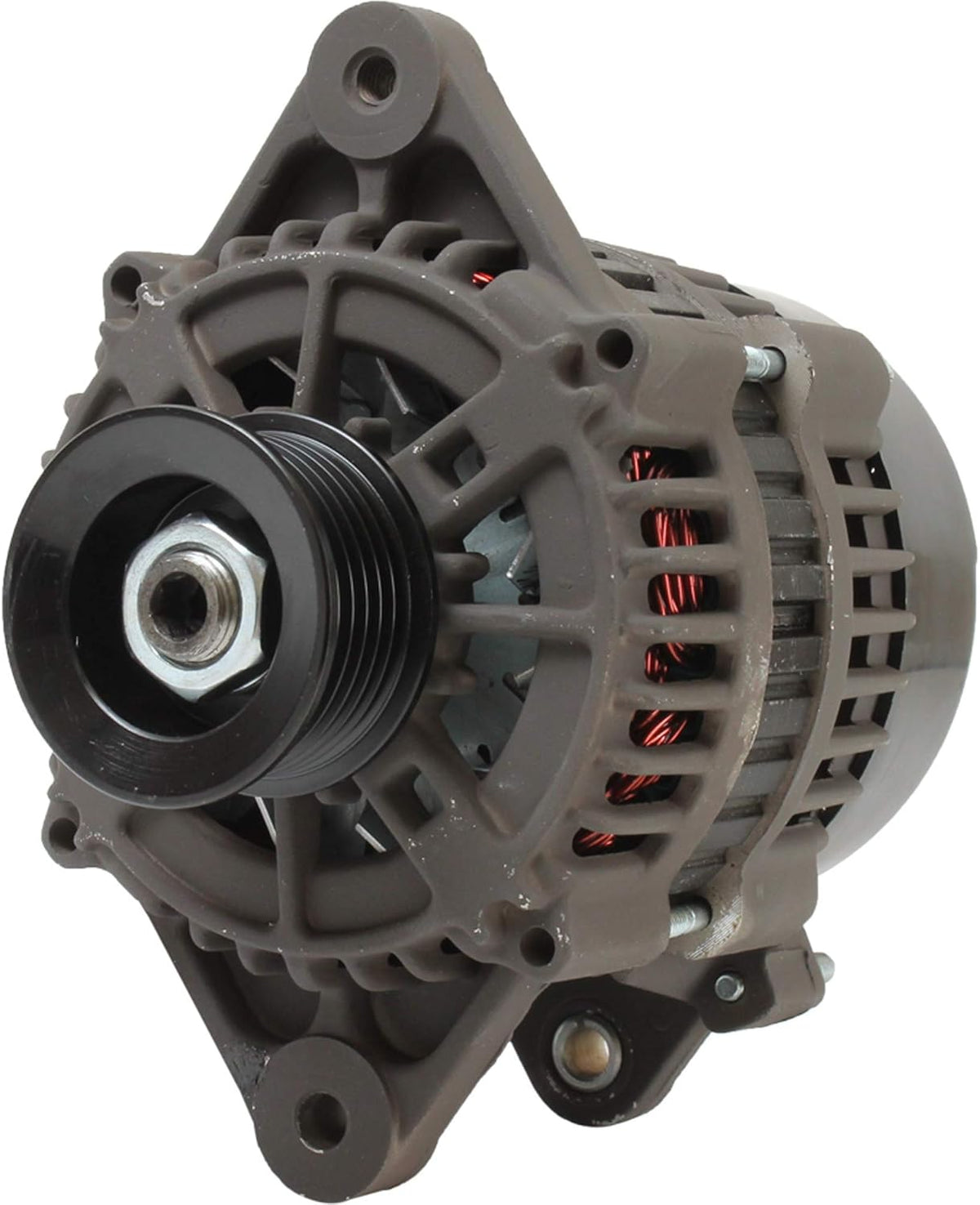

Alternator J782746
Alternator J782746
Specs: Alternator, Voltage: 12, Rotation: CW, Dimension: Replacement 70A 7SI Unit:, Mtg. Ear 1Hole: M8-1.25 Threaded, Mtg. Ear 2 Hole: 8.4mm Unthreaded, Mtg. Ear 3 Hole: 8.4mm Unthreaded, B+ Terminal: M6-1.0, S Terminal: Spade, L Terminal: Spade, Amperage: 70, Clock: 12, Pulley Class: S6, Regulator: IR, Fan Type: IF, Brief: Marine Applications, 6-Groove Pulley 50mm OD
Replaces OEM Numbers: ARCO MARINE: 20815, ARROWHEAD: ADR0316, ARROWHEAD (OEM): D19020612, DELCO: 19020611, 19020612, 8600612, EMP PARTS: 4-6298, J & N: 400-12166, 400-12299, LESTER: 8461, MERCURY MARINE: 50-8M0095472, 863077-1, 863077T, 8M0095472, SIERRA MARINE: 18-6298
Compatible With/Replacement For: MERCRUISER Model 350 Mag MPI (Gen +) All, Model 350 Mag MPI Alpha & Bravo 1998-2000, Model 350 Mag MPI Hor Alpha & Bravo All, Model 350 Mag MPI Horizon All, Model 377 Scorpion All, Model 377 Scorpion HO EC All, Model 4.3L (Carb.) Alpha & Bravo All, Model 4.3L (MFI) Alpha & Bravo All, Model 4.3L MPI 2001-2002, Model 4.5L V6 (Mercruiser 4.5L) All, Model 496 Mag All, Model 496 Mag HO All, Model 5.0L (2-BBL) (Gen +) 1998-2002, Model 5.0L (Carb.) Alpha & Bravo All
1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
100% New Aftermarket Alternator built to meet OEM specifications
**Verify the part fits before purchasing**
Specs:
Unit Type: Alternator
Voltage: 12
Rotation: CW
Dimension: Replacement 70A 7SI Unit:, Mtg. Ear 1Hole: M8-1.25 Threaded, Mtg. Ear 2 Hole: 8.4mm Unthreaded, Mtg. Ear 3 Hole: 8.4mm Unthreaded, B+ Terminal: M6-1.0, S Terminal: Spade, L Terminal: Spade,
Amperage: 70
Clock: 12
Pulley Class: S6
Regulator: IR
Fan Type: IF
Brief: Marine Applications
6-Groove Pulley 50mm OD
Replaces OEM Numbers:
ARCO MARINE: 20815
ARROWHEAD: ADR0316
ARROWHEAD (OEM): D19020612
DELCO: 19020611, 19020612, 8600612
EMP PARTS: 4-6298
J & N: 400-12166, 400-12299
LESTER: 8461
MERCURY MARINE: 50-8M0095472, 863077-1, 863077T, 8M0095472
SIERRA MARINE: 18-6298
Compatible With/Replacement For:
MERCRUISER Model 350 Mag MPI (Gen +) All, Model 350 Mag MPI Alpha & Bravo 1998-2000, Model 350 Mag MPI Hor Alpha & Bravo All, Model 350 Mag MPI Horizon All, Model 377 Scorpion All, Model 377 Scorpion HO EC All, Model 4.3L (Carb.) Alpha & Bravo All, Model 4.3L (MFI) Alpha & Bravo All, Model 4.3L MPI 2001-2002, Model 4.5L V6 (Mercruiser 4.5L) All, Model 496 Mag All, Model 496 Mag HO All, Model 5.0L (2-BBL) (Gen +) 1998-2002, Model 5.0L (Carb.) Alpha & Bravo All, Model 5.0L MPI Alpha & Bravo All, Model 5.7L (2-BBL) (Gen +) 1998-2002, Model 5.7L (Carb.) Alpha & Bravo All, Model 5.7L EFI (Gen +) All, Model 5.7L MIE 1988-1998, Model 5.7L Ski (CARB) All, Model 500 EFI 2000-2002, Model 525 EFI 2000-2002, Model 600SCI All, Model 662SCI All, Model 700SCI All, Model 8.1S HO All, Model 8.1S Horizon All, Model MX 6.2L BS MPI Ski All, Model MX 6.2L MPI All, Model MX 6.2L MPI Horizon All
